RC Robot Tank
The RC Robot Tank is a mobile tank that is remotely controlled by a dismantled PS2 controller. It’s able to move forward, backward, and turn. It consists of a universal plate, an Arduino, a motor shield, a Tamiya track and wheel set, a 6v Tenergy battery pack and a double gearbox motor.
Engineer
Jo S
Area of Interest
Mechanical Engineering
School
Bard High School Early College
Grade
Incoming Junior
First Milestone

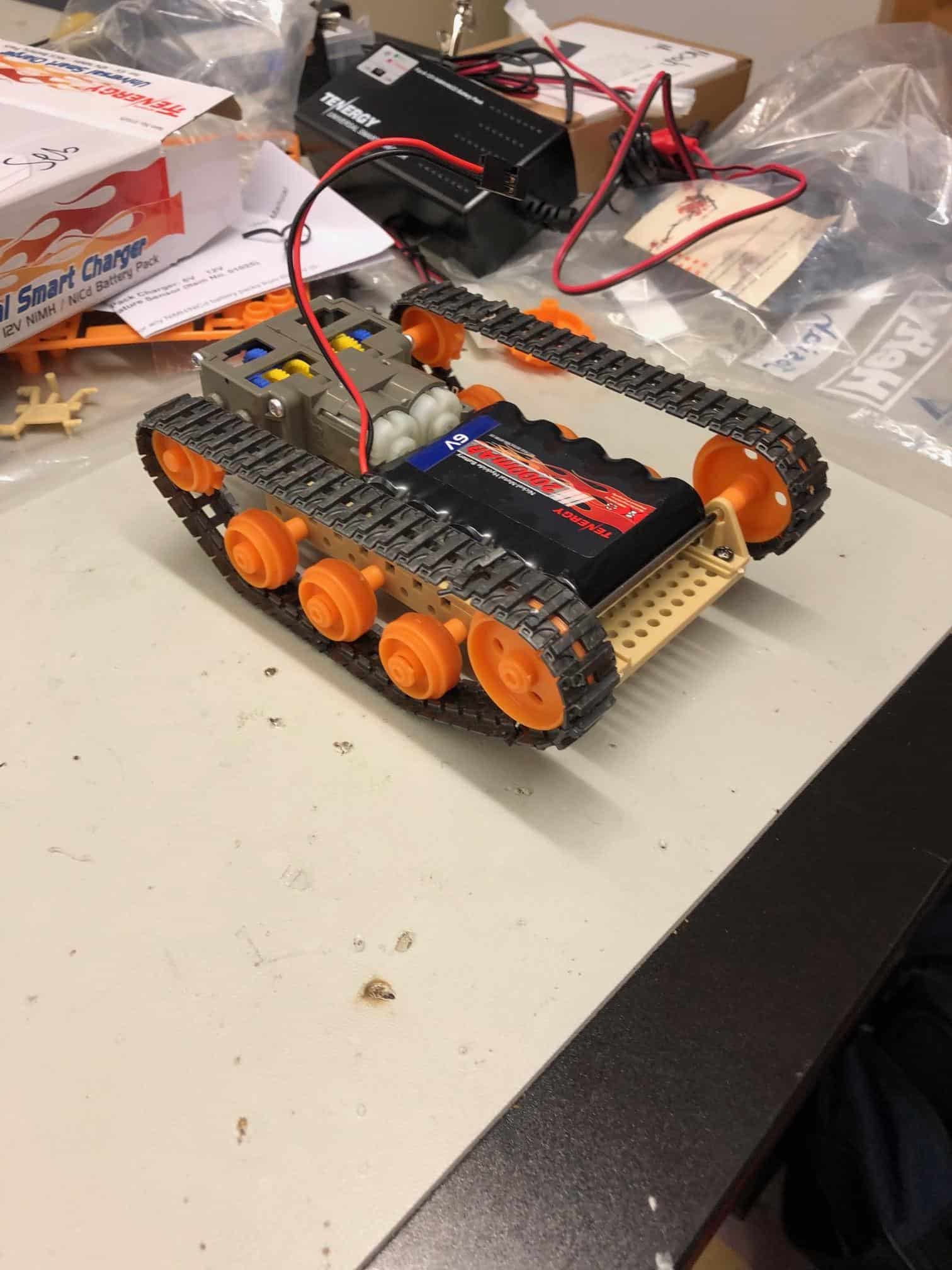

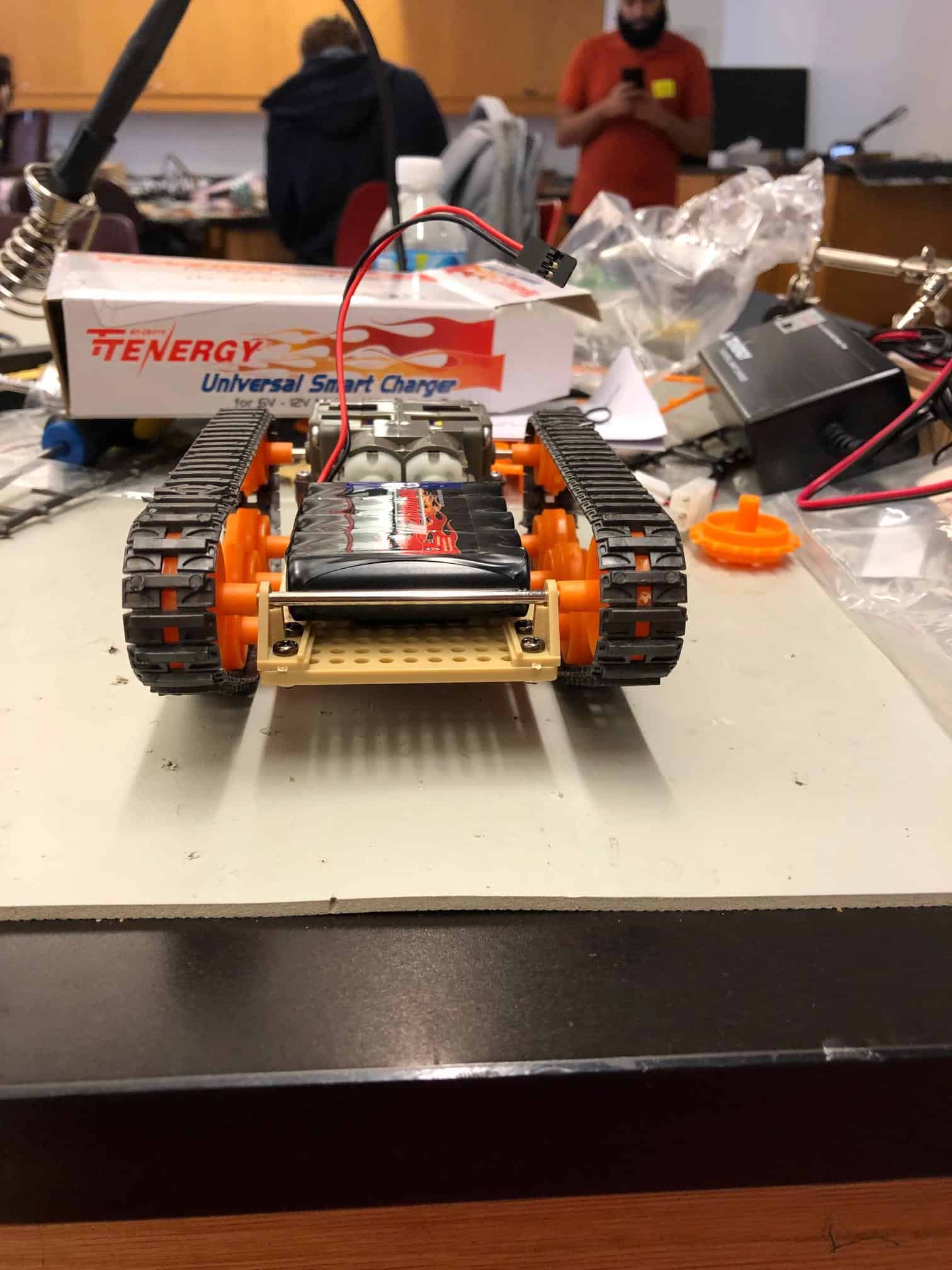

So far, the tank is only a body with wheels, a motor and a battery pack. The Arduino and motor shield will be added in my later milestones. The motor is connected to the track and wheel set, but the battery pack isn’t connected to the motor.
How the tank works so far:

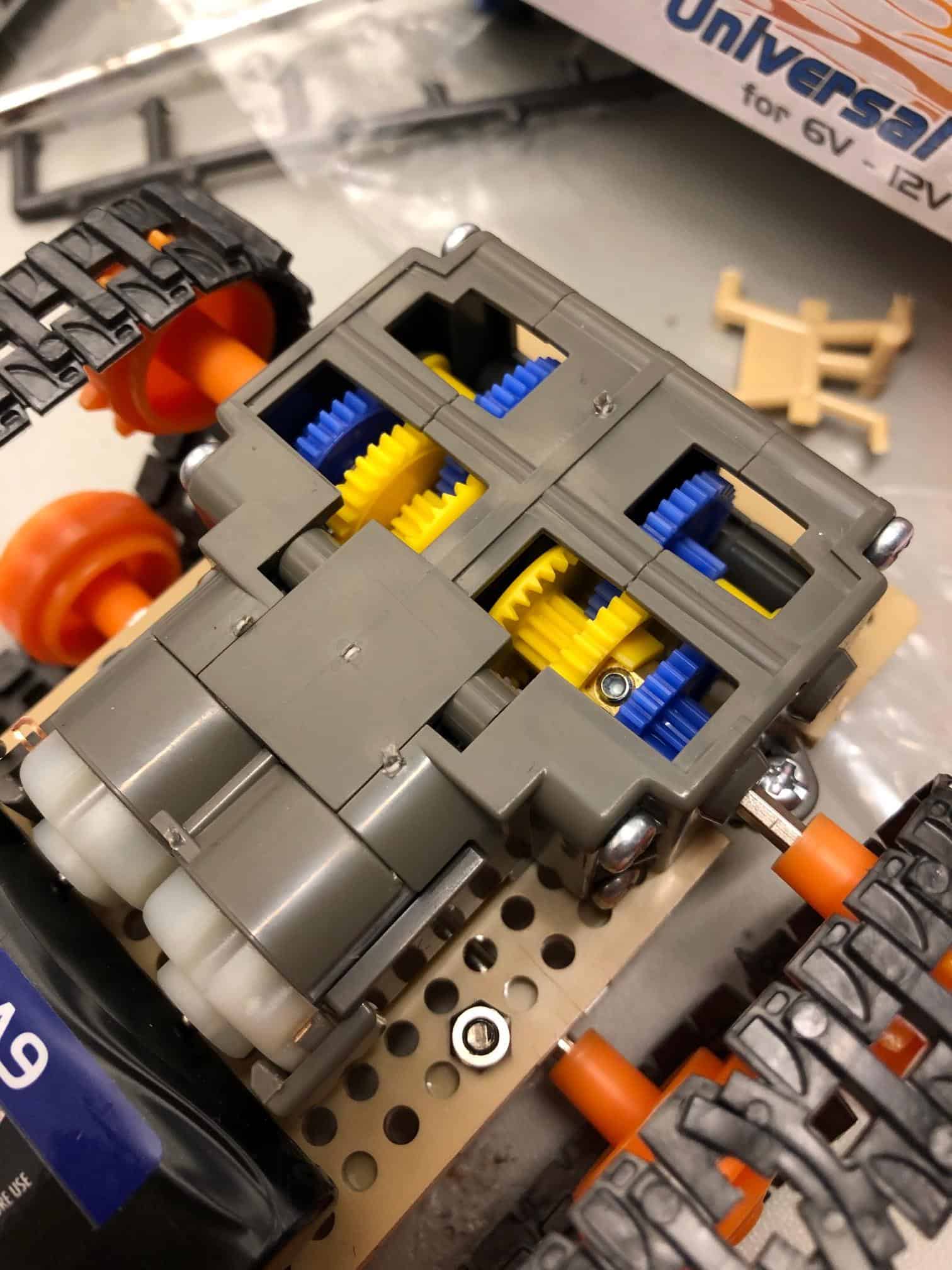

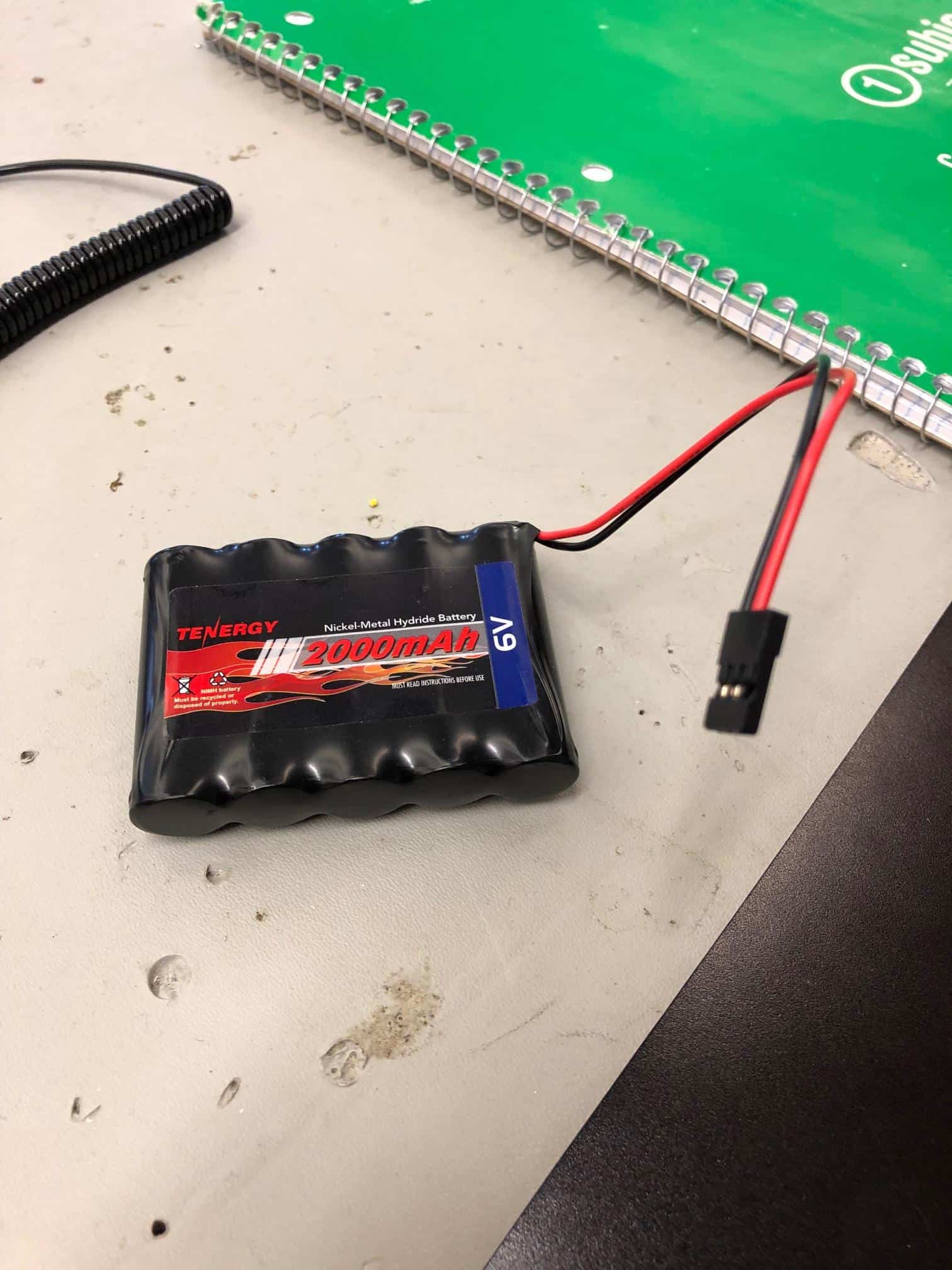

The wheels can turn and are connected by a rubber track. I had to assemble the motor myself. The motor is a double gearbox motor so the two motors run independently from each other. This means that the two tracks can run in opposite directions at the same time, giving the tank more mobility. The battery pack is a Tenergy 6v battery pack, and is rechargeable. A universal plate holds the motor, battery pack and wheels together. I had to cut a piece off of the universal plate to fit the double gearbox motor on to the plate.
Second Milestone

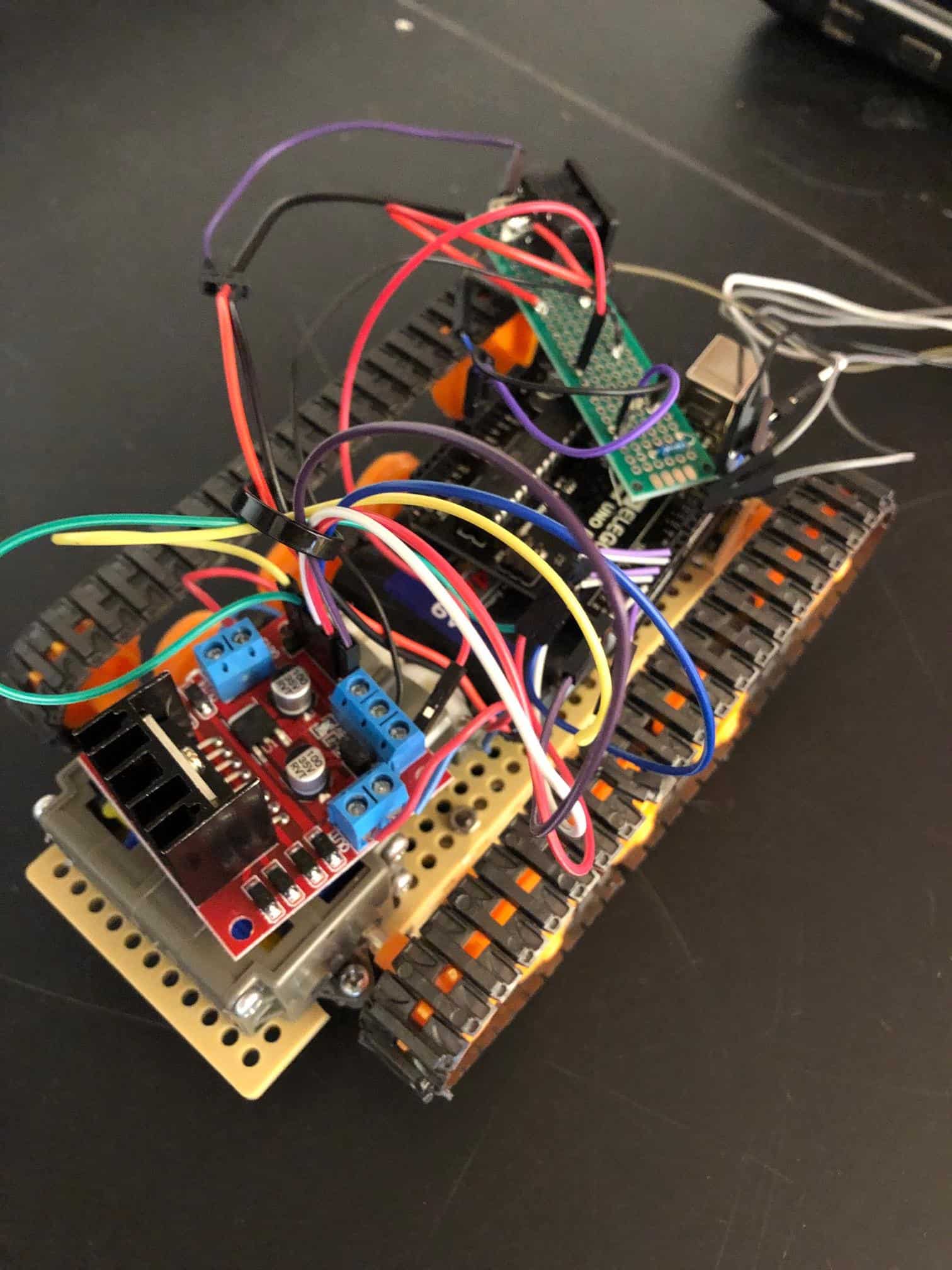

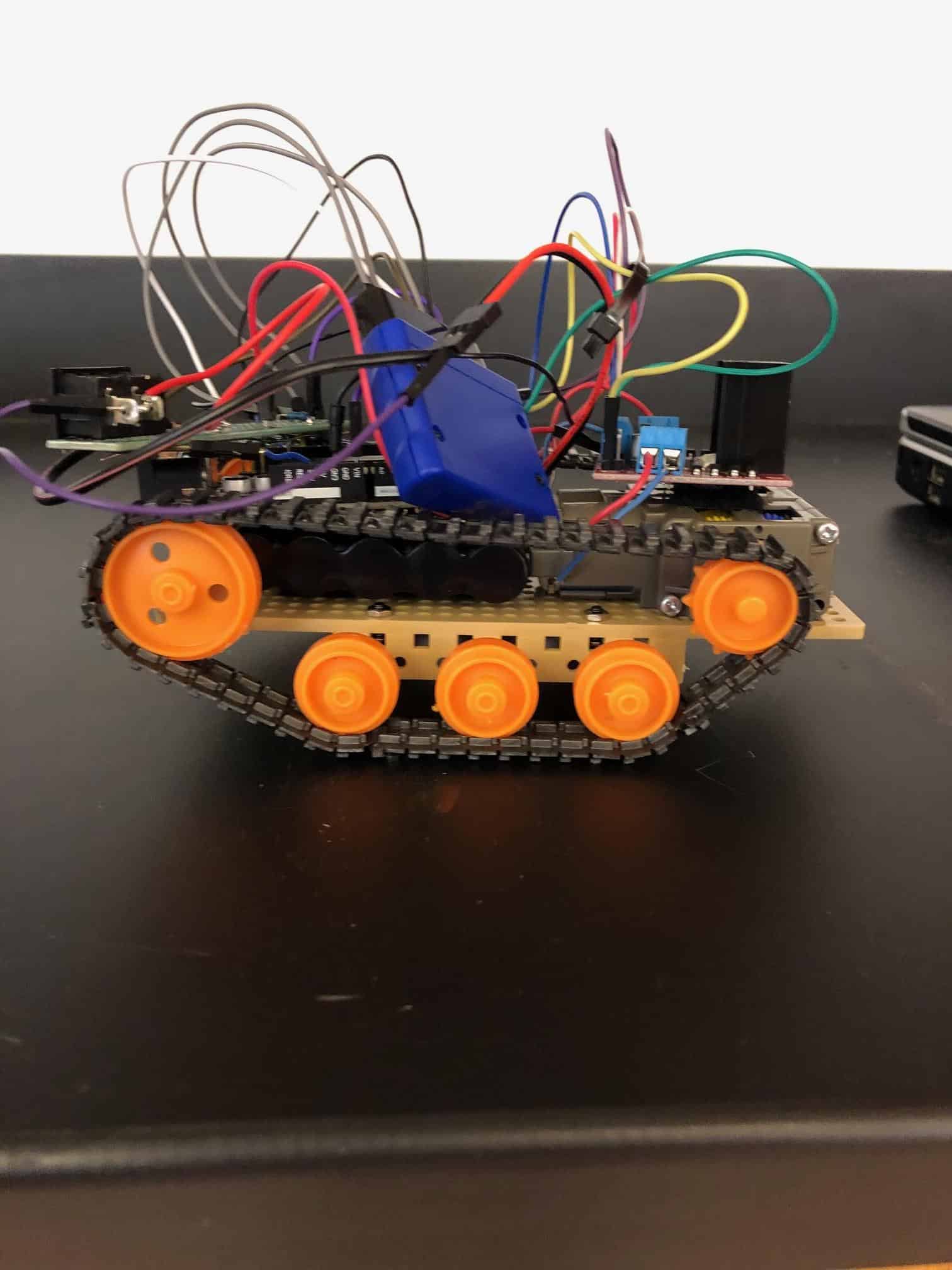

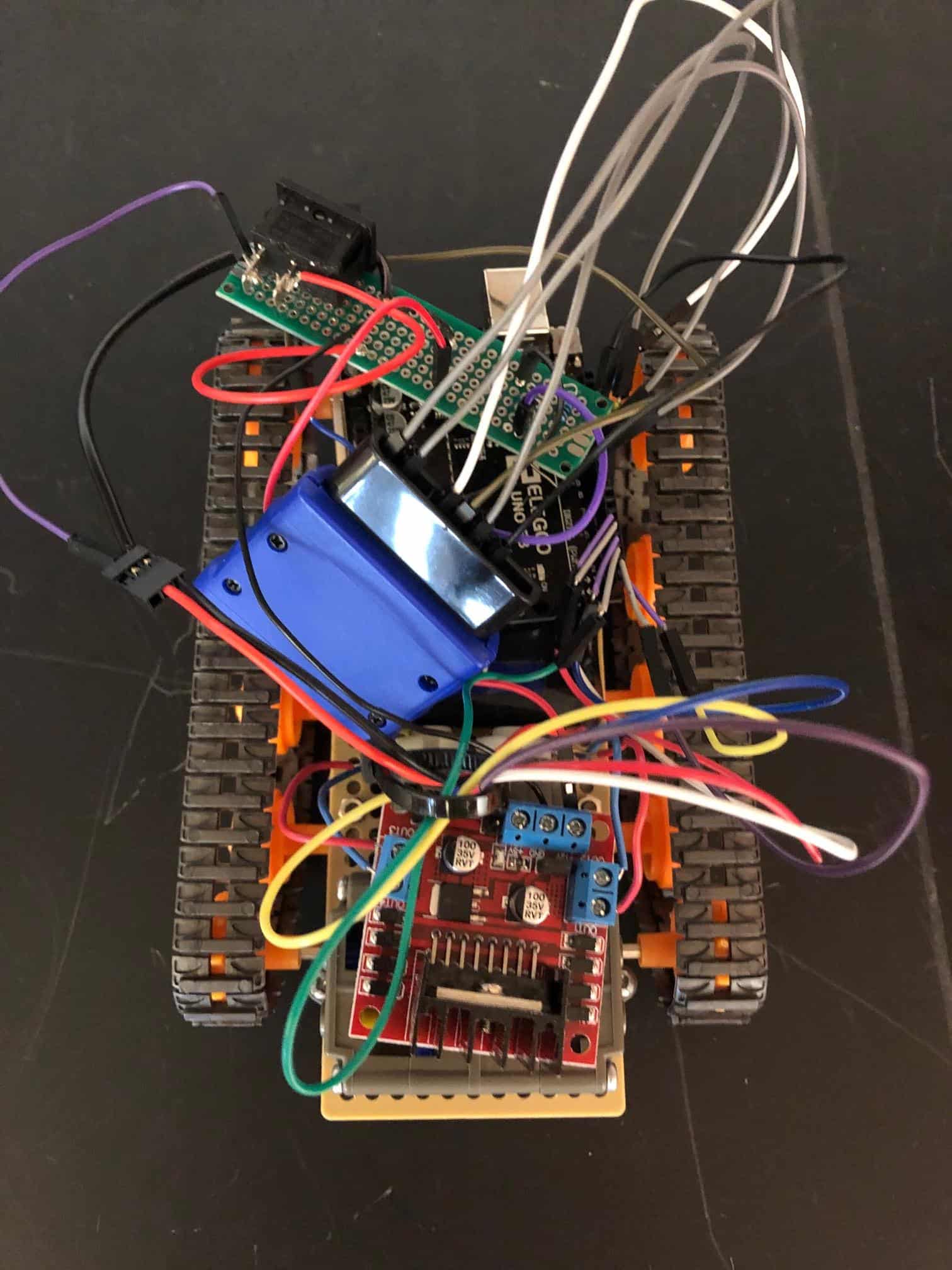

For my second milestone, I connected the Arduino and the motor shield with jumper wires and other stripped wires. I then coded the Arduino so that it would tell the motor shield to run a simple sequence of moving forward, doing a 180 degree turn and moving forward again to its original position. The tank would then repeat that until I turned it off.
Starter Project – Useless Machine
The Useless Machine is a device that allows the user to push a button, and when that button is pushed an arm connected to a motor pushes the button back. It’s covered in a black plastic covering to protect the electronics inside.
